Model

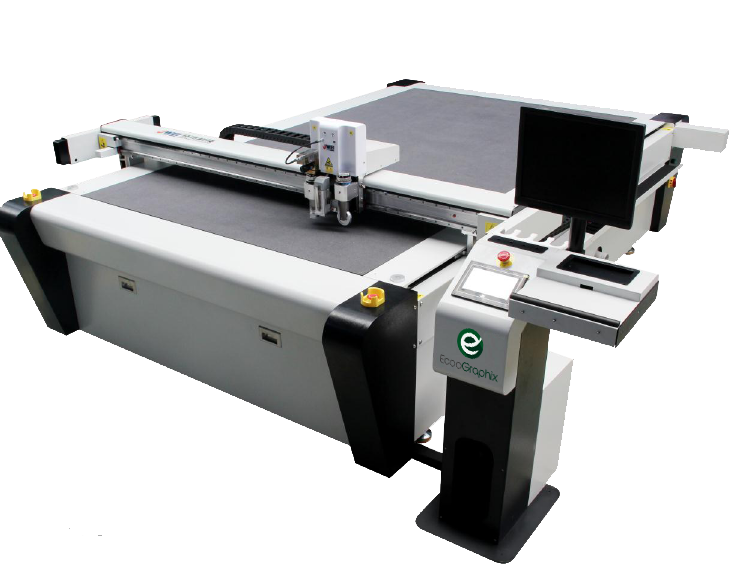

JW1113

Multi-functional

machine head

Easy to change different tools. Engraving and router. Oscillating thorough cutting/kiss

cutting/Creasing/Plotting/Laser positioning, and precise camera registration.

Tools

Various kinds of cutting blades, different size of   creasing wheels

Safety device

Infrared sensor, responsive, safe and reliable

Moving speed

Up to 1500mm/s

Cutting speed

Up to 1200mm/s (depends on the kind of  material)

Cutting thickness

≤50mm (customize according to different materials)

Cutting material

All kinds of corrugated paperboard, Grey board, KT board, PVC expansion sheet,

honey comb board, car sticker, light slide, PP gum, flex banner, flag   fabric, EPE

forms, EVA, PVC plate, acrylic, thick foam etc

Cutting material affixed

Smart(optional) individual multi-zone vaccumsyction

Repeatability

±0.05mm

Interface

Ethermet Port

Numerical control panel

Multi-language LCD Touch screen

Transmission

Imported( Digital servo motor, straight rail, synchronous belt, guide screw)

Rated power

                                             7.5kw

Rated voltage

                          380V/220V±10%, 50Hz/60Hz

Max.cutting size

                                 1100mmx1300mm

Machine size

                                2250x2320x1280mm
